TireSoft Plugin
Problem:
- Preparing a 3D Parametric CAD model of tire patch from 2D drawing.
Input and Output:
- Input: 2D drawing (*.dwg)

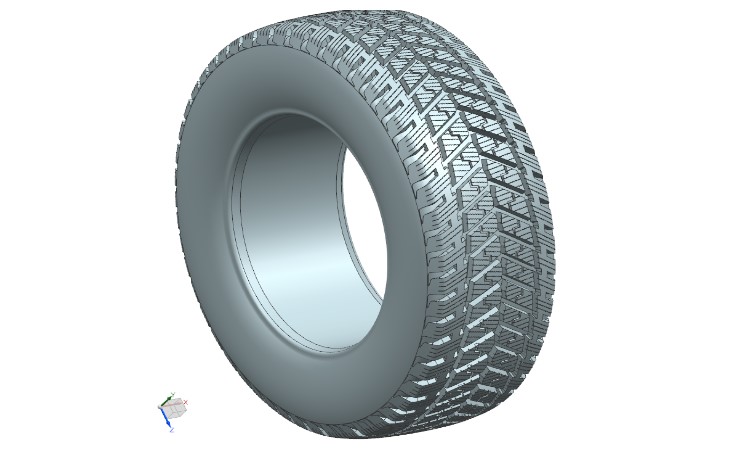

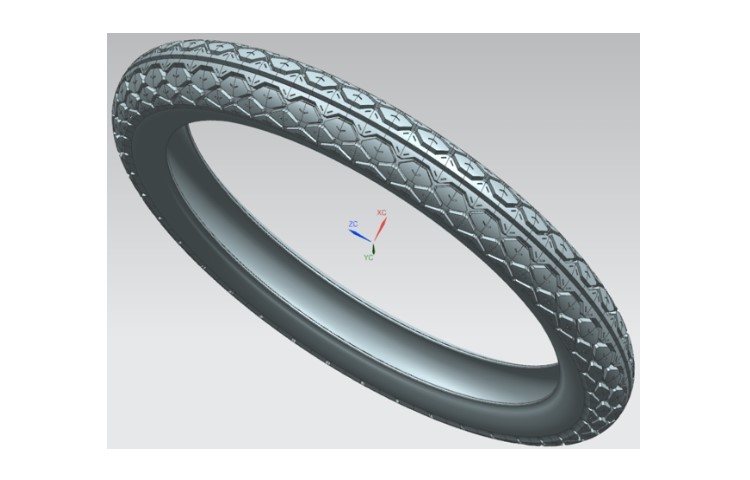

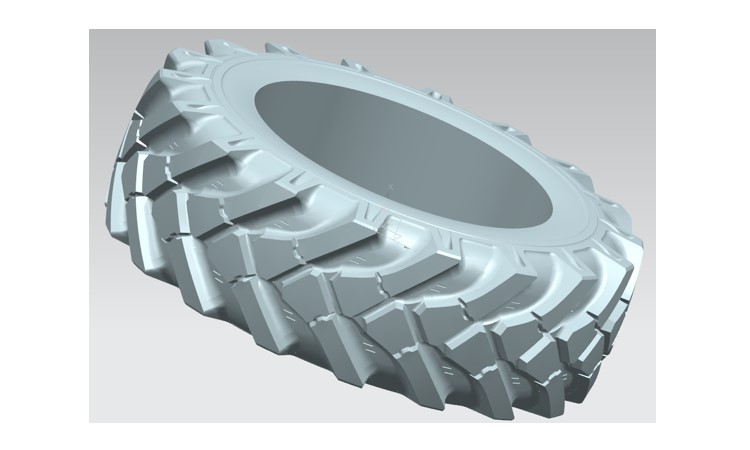

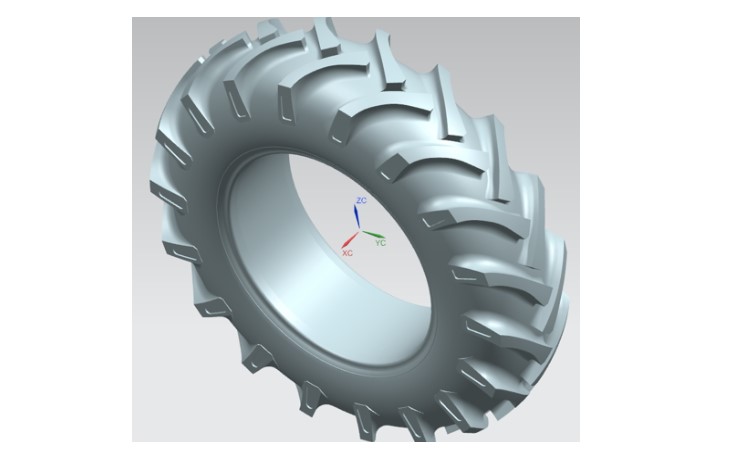

- Output: 3D CAD Model (*.prt)
- Base Software: Siemens NX CAD
Advantages:
- Highly skilled CAD modeler is not required.
- Average CAD modeling time of 15 working days is reduced to 2 to 4 hours depends on the complexity.
- Tire manufacturer’s & Mould manufacturer’s lead time and cost is saved.
